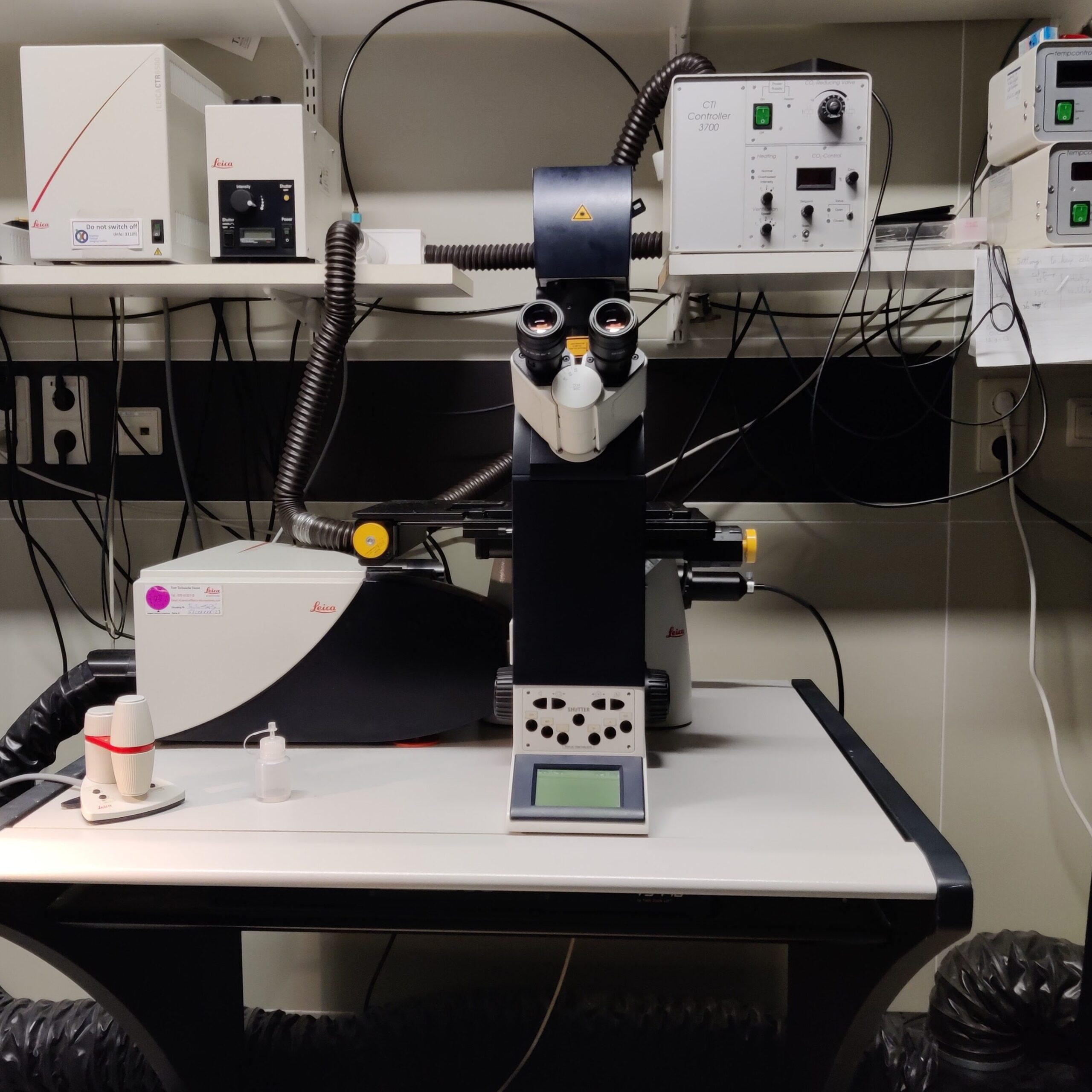

Leica SP5 1315 / Ee-1315

Leica SP5 laser scanning confocal with AOBS

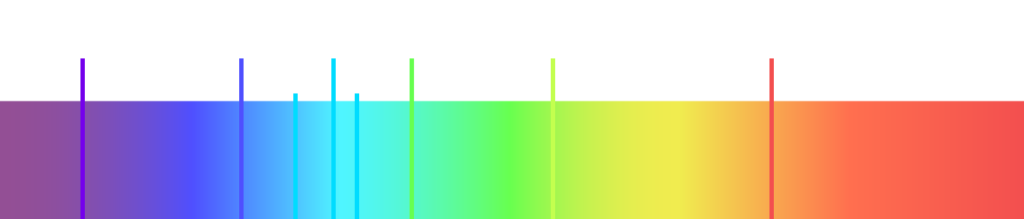

Lasers

Objectives

MagnificationNumerical
Aperture
Working
Distance (mm)
ImmersionType
10x0.402.20dryHCX PL APO CS
20x0.700.59dryHCX PL APO CS
20x0.700.25water/glyc./oilHCX PL Fluotar L
40x1.250.10oilHCX PL APO CS
63x1.400.14oilHCX PL APO CS

Detectors

3x spectral PMT detector (Photo Multiplier Tube)
2x spectral APD detector (Avalanche Photo Diode)
1x transmission PMT for bright field, DIC and polarization

Extra info

Metal-Halide lamp for EPI fluorescence
Motorized stage with inserts for slides, 35mm dishes, and multiwell plates
Peecon small chamber incubator with heating, CO2 and O2 regulation
Matrix screening software for high content screening
Avalance photo diodes for very high sensitivity

Applications

Live cell confocal imaging under CO2 and 37oC conditions
FRAP, FRET, (advanced multi well)
Time lapse imaging
Fixed cell imaging
