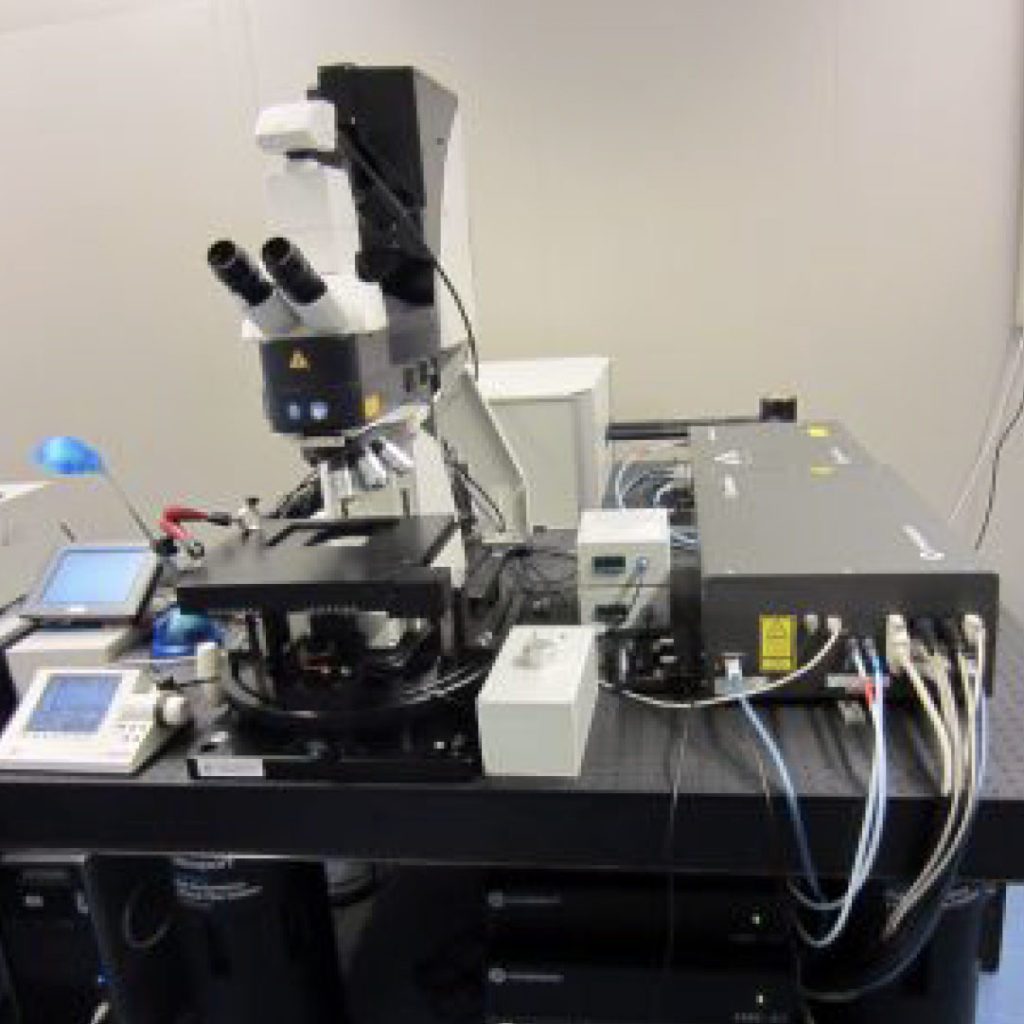

Leica SP5 Intravital / Ee-880

Leica SP5 AOBS with multiphoton laser and OPO

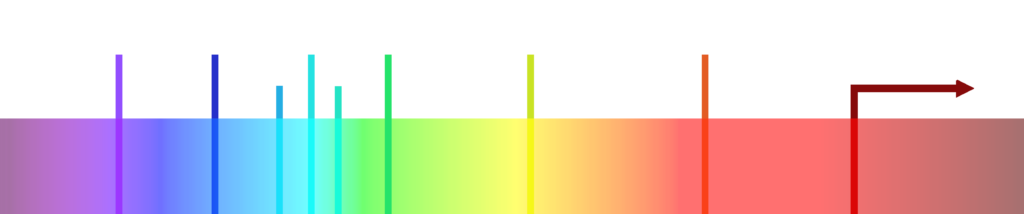

Lasers

Objectives

MagnificationNumerical
Aperture
Working
Distance (mm)
ImmersionType
1.6x0.053.40dryHCX PL S-APO
10x0.402.20dryHCX PL APO CS
20x0.501.15dryHCX PL S-APO
20x0.700.59dryHCX PL APO CS
20x1.001.95waterAPO (dipping)
40x1.250.10oilHCX PL APO CS

Detectors

3x spectral PMT detector (Photo Multiplier Tube)
4x NDD (Avalanche Photo Diode)
1x transmission PMT for bright field, DIC and polarization

Extra info

Coherent Chameleon Ultra (710-1040nm)
APE OPO (1100-1300nm)
Metal-Halide lamp for EPI fluorescence
Matrix screening software for high content screening

Applications

This confocal is especially equipped for intra vital imaging (advanced multi well)
Time lapse imaging
