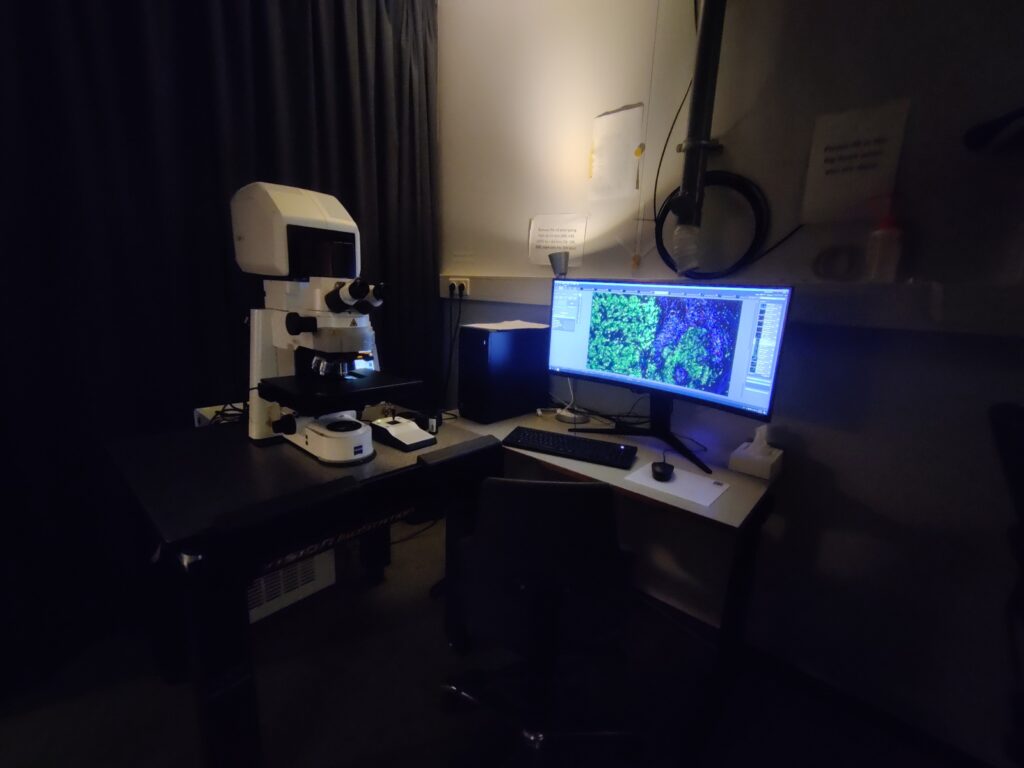

Axio Imager Z2 upright microscope
Lasers
Objectives
| Magnification | Numerical Aperture | Working Distance (mm) | Immersion | Type |
| 5x | 0.16 | 12.1 | dry | Plan-Apochromat |
| 10x | 0.3 | 5.2 | dry | EC Plan-Neofluar |
| 20x | 0.8 | 0.55 | dry | Plan-Apochromat |
| 40x | 1.30 | 0.21 | oil | Plan-Apochromat |
| 63x | 1.40 | 0.19 | oil | Plan-Apochromat |
Detectors
3x spectral PMT detectors (Photo Multiplier Tube)
Filters
Filter Set 90 HE LED
Exitation: BP 385/30 + BP 469/38 + BP 555/30 + BP 631/33
Emission: QBP 425/30+514/30+592/25+709/100
Extra info
Colibri5 a 4 channel LED light source for EPI
Zen Blue software with ZEN Tiles & Positions module
Applications
Confocal imaging on fixed samples prepared on slides optionally combined with tiling
